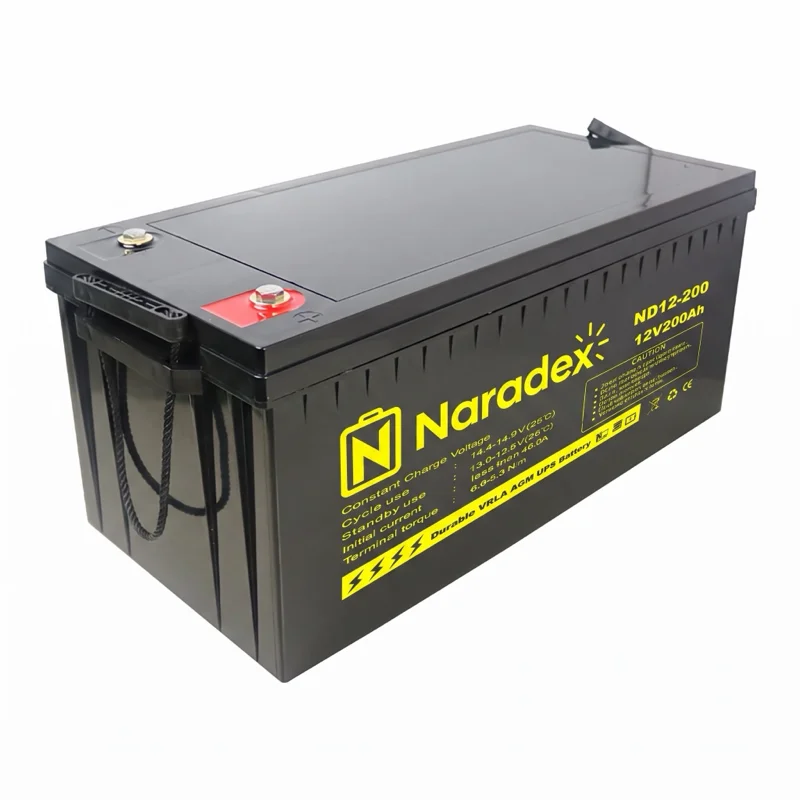

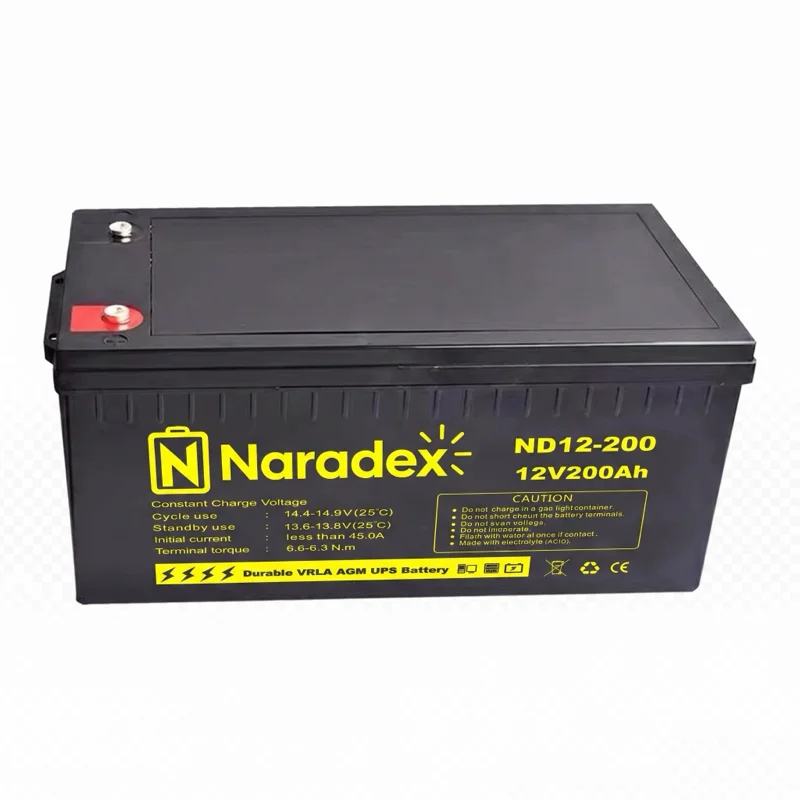

ND12-200 | 12V 200Ah AGM Battery

Maximum capacity 12V 200Ah AGM battery for the most demanding backup power applications — data center UPS banks, railway signaling, hospital emergency power, and critical infrastructure.

Key Features

Maximum capacity in the ND12 series
Data center & hospital backup power
Railway signaling & airport systems
Heavy-duty 58kg robust construction
Full IEC 60896 compliance

Technical Specifications

Model	ND12-200
Nominal Voltage	12V (6 cells)
Nominal Capacity (C10)	200 Ah
Reference Capacity	C1: 132.0 Ah / C5: 177.0 Ah / C10: 200.0 Ah / C20: 220.0 Ah
Energy (C10)	200200200200200200200200200200200200 Wh
Internal Resistance	≤2.5 mΩ
Max. Discharge Current	2000A (5s)
Max. Charge Current	50.0A (0.25C)
Self-Discharge	≤3% / month @ 25°C
Design Life (Float)	15 years @ 25°C
Cycle Life	800 cycles @ 50% DOD
Float Charge Voltage	13.6–13.8V (2.27–2.30V/cell)
Cycle Charge Voltage	14.6–14.8V (2.43–2.47V/cell)
Discharge Temp	-40°C ~ 60°C
Charge Temp	-20°C ~ 50°C
Storage Temp	-40°C ~ 60°C
Normal Operating Temp	25°C ± 5°C
Container	ABS (UL94-HB); UL94-V0 optional
Terminal	F12 (M8)
Complied Standards	IEC60896-21/22, IEC61427, CE / ISO 9001
Net Weight	58.0 kg
Gross Weight	62.0 kg
Dimensions (L×W×H)	522 × 240 × 219 mm (224 mm total height)
Weight	58.0 kg
