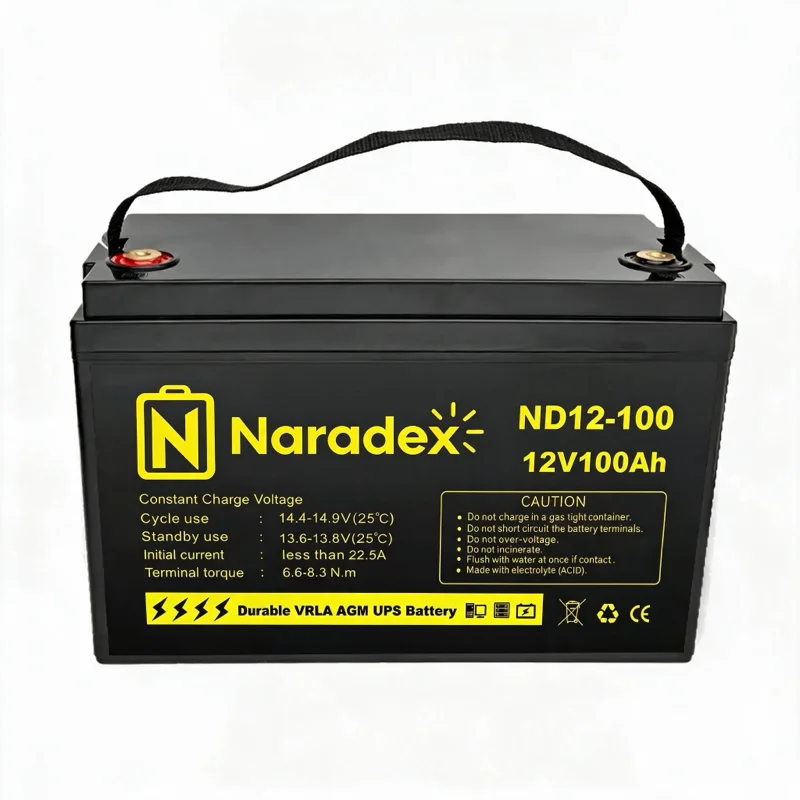

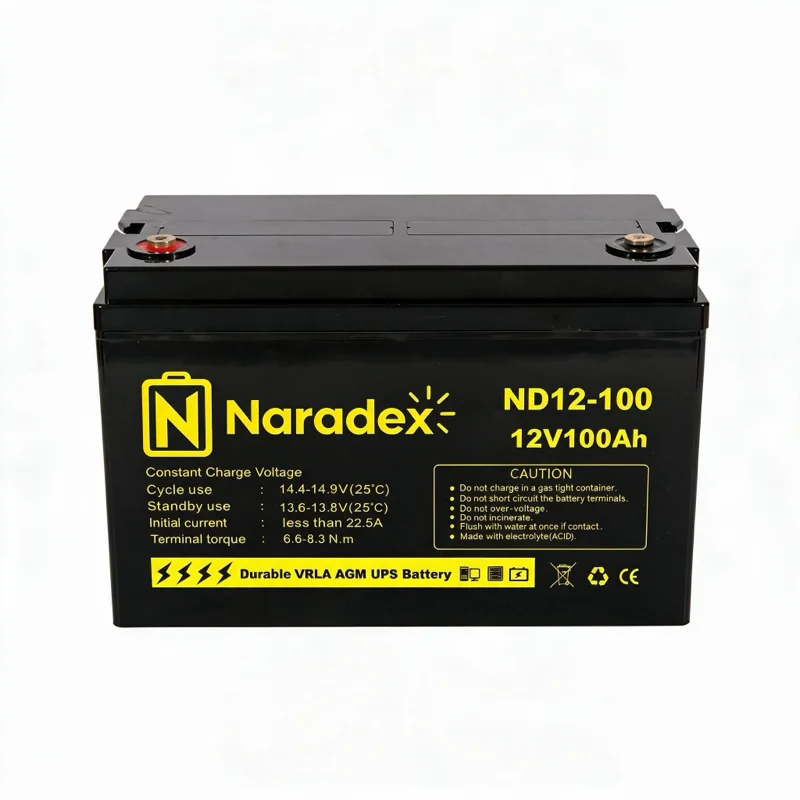

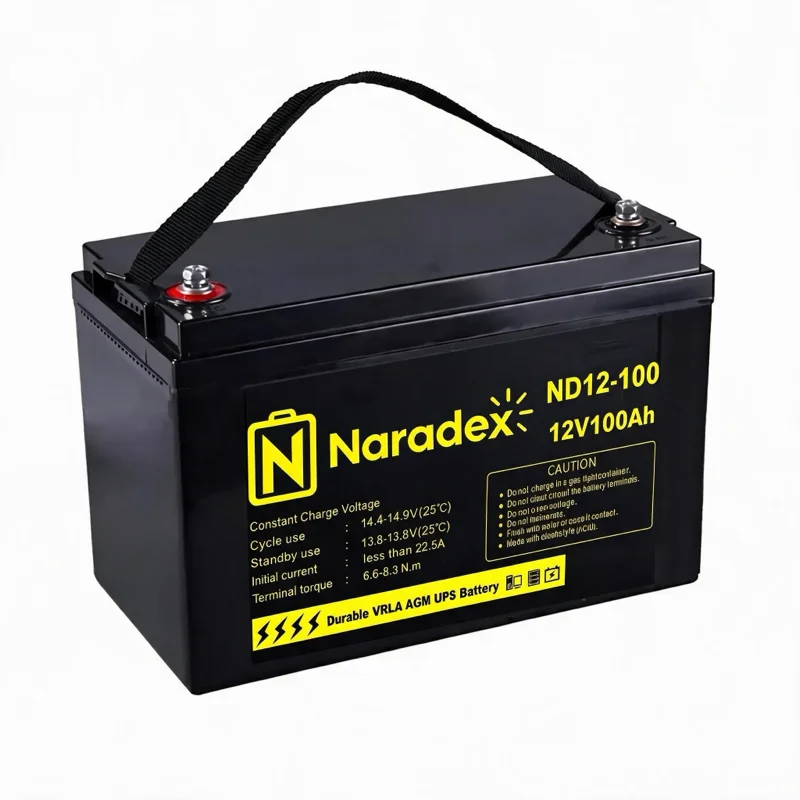

ND12-100 | 12V 100Ah AGM Battery

Workhorse 12V 100Ah AGM battery — the most popular model for UPS systems, telecom stations, and large-scale backup power installations. CE and IEC 60896 certified.

Key Features

Best-selling model for UPS backup
CE & IEC 60896-21/22 certified
Compatible with all major UPS brands
Thick high-Sn low-Ca grid technology
MSDS approved for safe sea shipping

Technical Specifications

Model	ND12-100
Nominal Voltage	12V (6 cells)
Nominal Capacity (C10)	90 Ah
Reference Capacity	C3: 67.5 Ah / C5: 76.5 Ah / C10: 90.0 Ah / C20: 100.0 Ah
Energy (C10)	100100100100100100100100100100100100 Wh
Internal Resistance	≤5.3 mΩ
Max. Discharge Current	1000A (5s)
Max. Charge Current	20.0A (0.20C)
Self-Discharge	≤3% / month @ 25°C
Design Life (Float)	15 years @ 25°C
Cycle Life	800 cycles @ 50% DOD
Float Charge Voltage	13.6–13.8V (2.27–2.30V/cell)
Cycle Charge Voltage	14.2–14.4V (2.37–2.40V/cell)
Discharge Temp	-40°C ~ 60°C
Charge Temp	-20°C ~ 50°C
Storage Temp	-40°C ~ 60°C
Normal Operating Temp	25°C ± 5°C
Container	ABS (UL94-HB); UL94-V0 optional
Terminal	F12 (M8)
Complied Standards	IEC60896-21/22, IEC61427, CE / ISO 9001
Net Weight	27.0 kg
Gross Weight	29.5 kg
Dimensions (L×W×H)	330 × 172 × 195 mm (215 mm total height)
Weight	27.0 kg
